ZT-D3864-R Brushed DC Motor

ZT-D3864-R brushed dc motor with verified 12V/24V options and 2000–6000 rpm source-listed no-load speed versions.

12V / 24V

  • Voltage options: 12V / 24V
  • Rated speed options: 1556 / 2333 / 3111 / 3889 / 4667 rpm
Send Inquiry
Product Detail
Specifications
Technical Sheet
Product Pictures
FAQ

Product Detail

ZT-D3864-R is a brushed dc motor with source-listed 12V and 24V options. Its performance table preserves 10 voltage/speed configurations and keeps every source-provided value aligned to its original row.

Key Features

  • 12V and 24V source-listed voltage options
  • 5 source-listed no-load speed versions from 2000 to 6000 rpm

Specifications

  • Model: ZT-D3864-R
  • Product type: Brushed DC Motor
  • Voltage options: 12V / 24V
  • Rated speed options: 1556 / 2333 / 3111 / 3889 / 4667 rpm

Technical Sheet

ModelVoltageNo-load speed (rpm)Rated speed (rpm)Rated torque (g·cm)Stall torque (g·cm)Rated current (mA)Stall current (mA)Input power (W)Weight (g)
WS-38ZYT64-R12V2000155613862136011004.3Approx. 270
WS-38ZYT64-R12V3000233318482750022006Approx. 270
WS-38ZYT64-R12V4000311120190372032008.6Approx. 270
WS-38ZYT64-R12V500038893061376950610011.4Approx. 270
WS-38ZYT64-R12V6000466733014851050790012.6Approx. 270
WS-38ZYT64-R24V2000155620190324012005.8Approx. 270
WS-38ZYT64-R24V300023332761241500130012Approx. 270
WS-38ZYT64-R24V400031113011354550220013.2Approx. 270
WS-38ZYT64-R24V500038893211445650320015.6Approx. 270
WS-38ZYT64-R24V600046673431542800410019.2Approx. 270

Product Pictures

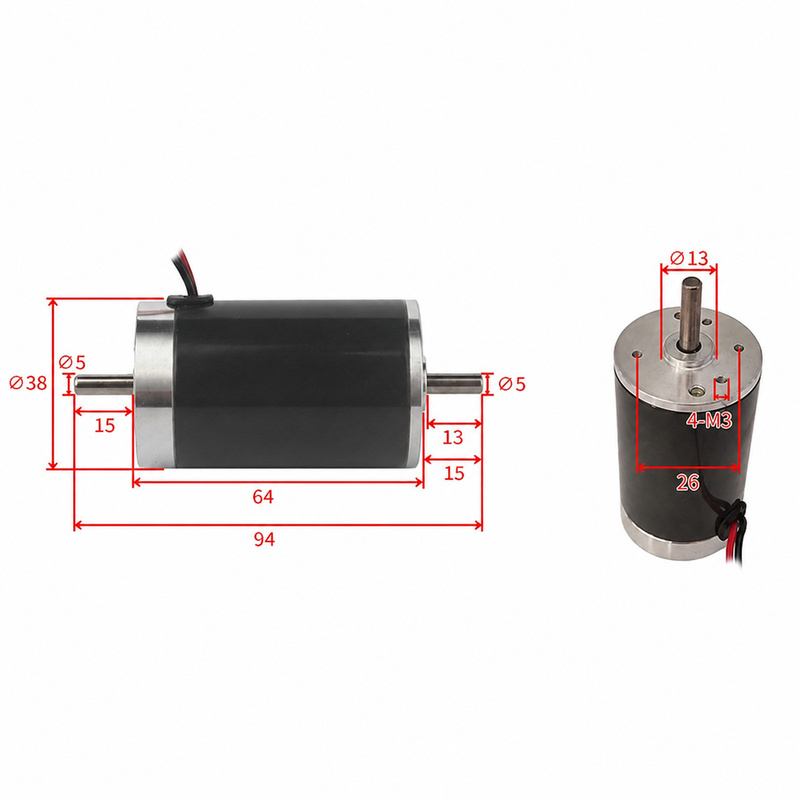

ZT-D3864-R brushed dc motor - product image 3

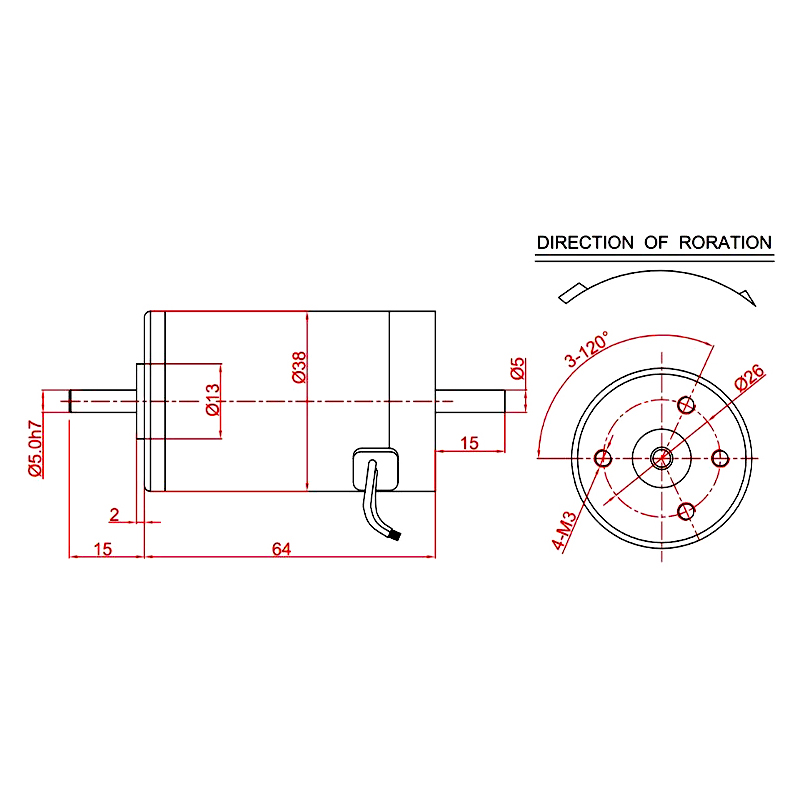

ZT-D3864-R brushed dc motor - product image 5

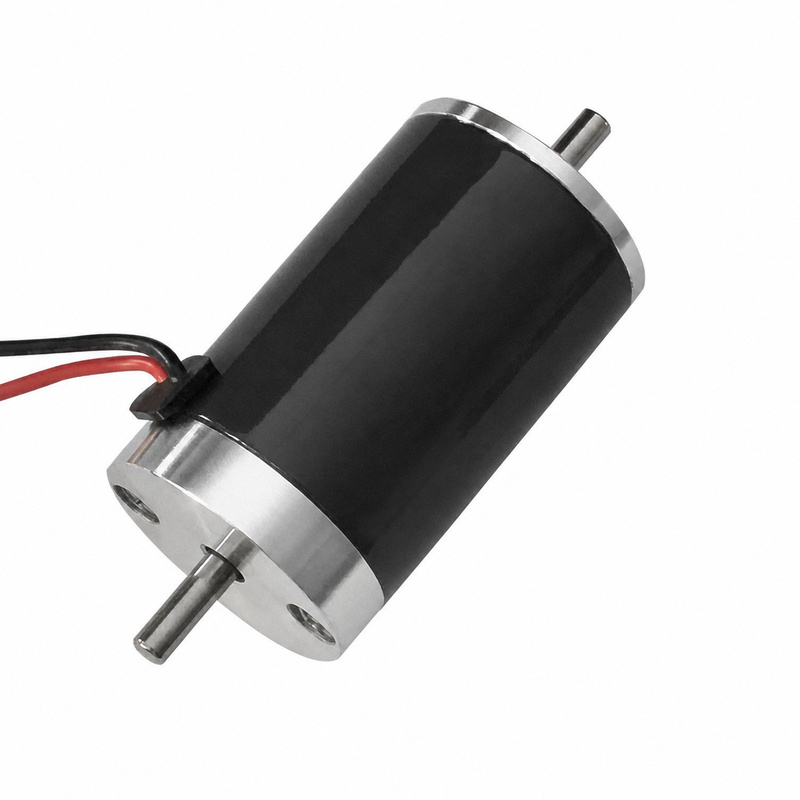

ZT-D3864-R brushed dc motor - product image 4

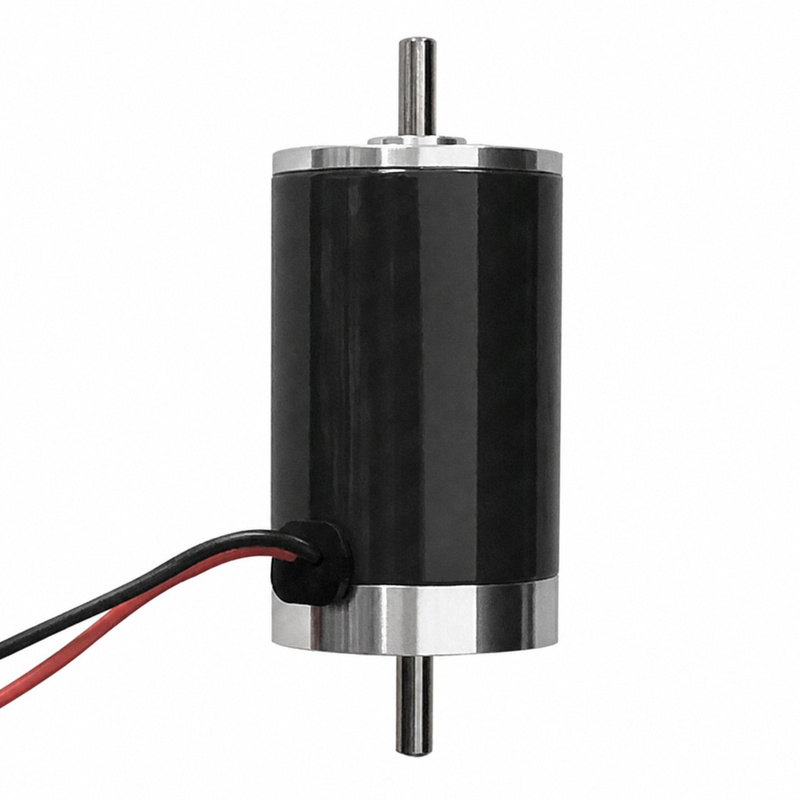

ZT-D3864-R brushed dc motor - product image 2

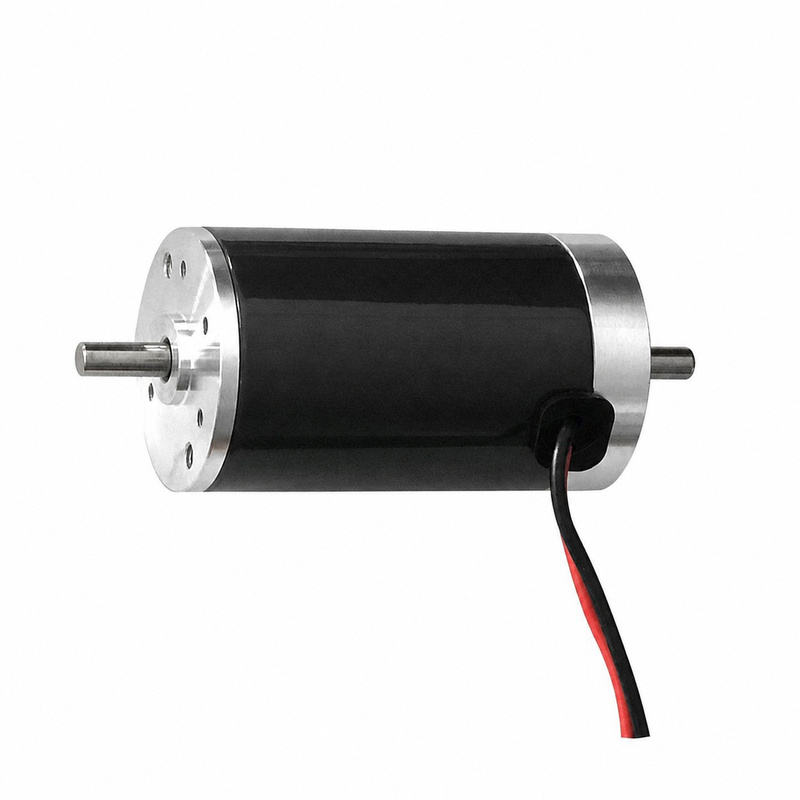

ZT-D3864-R brushed dc motor - product image 6

FAQ

What voltage options are listed for ZT-D3864-R?

The structured specification table lists 12V and 24V options.

What no-load speed versions are available?

The source table lists 2000, 3000, 4000, 5000, 6000 rpm no-load speed versions.
