ZT-64GB3530F Spur Gear DC Motor
ZT-64GB3530F spur gear dc motor with verified 12V/24V options and 35–350 rpm source-listed no-load speed versions.
12V / 24V
- Voltage options: 12V / 24V
- Rated speed options: 26.25 / 56.25 / 82.5 / 108.75 / 138.75 / 262.5 / 52.5 / 217.5 rpm
Product Detail
ZT-64GB3530F is a spur gear dc motor with source-listed 12V and 24V options. Its performance table preserves 9 voltage/speed configurations and keeps every source-provided value aligned to its original row.
Key Features
- 12V and 24V source-listed voltage options
- 8 source-listed no-load speed versions from 35 to 350 rpm
Specifications
- Model: ZT-64GB3530F
- Product type: Spur Gear DC Motor
- Voltage options: 12V / 24V
- Rated speed options: 26.25 / 56.25 / 82.5 / 108.75 / 138.75 / 262.5 / 52.5 / 217.5 rpm
Technical Sheet
| Voltage | No-load speed (rpm) | Rated speed (rpm) | Rated torque (kg·cm) | Rated current (mA) |
|---|---|---|---|---|
| 12V | 35 | 26.25 | 1.2 | 100 |
| 12V | 75 | 56.25 | 1.5 | 140 |
| 12V | 110 | 82.5 | 2 | 400 |
| 12V | 145 | 108.75 | 1.4 | 300 |
| 12V | 185 | 138.75 | 1.6 | 520 |
| 12V | 350 | 262.5 | 1.5 | 510 |
| 24V | 70 | 52.5 | 2.5 | 125 |
| 24V | 145 | 108.75 | 2.1 | 175 |
| 24V | 290 | 217.5 | 2.2 | 375 |

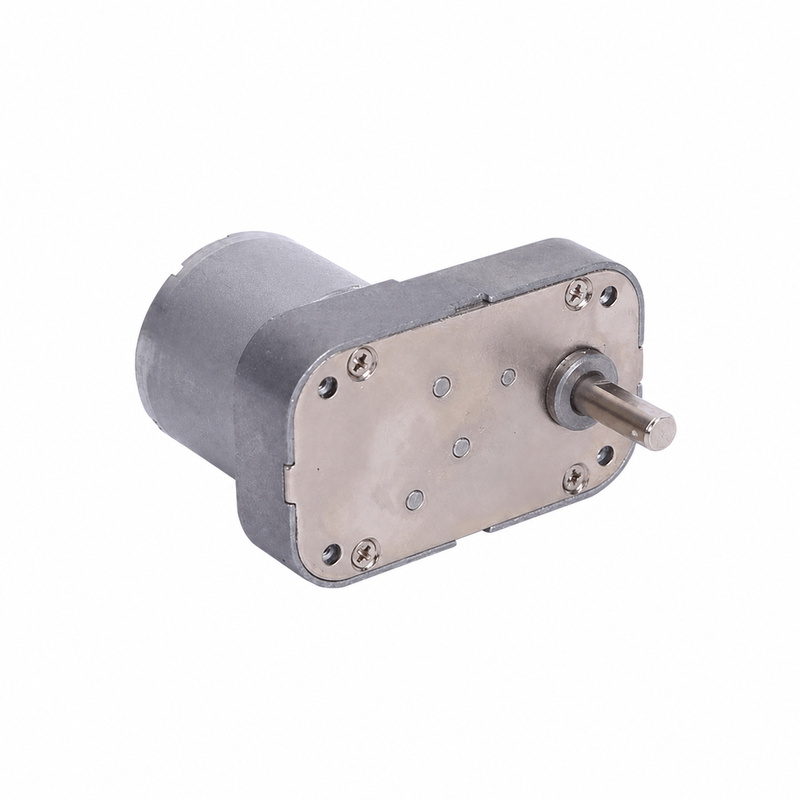

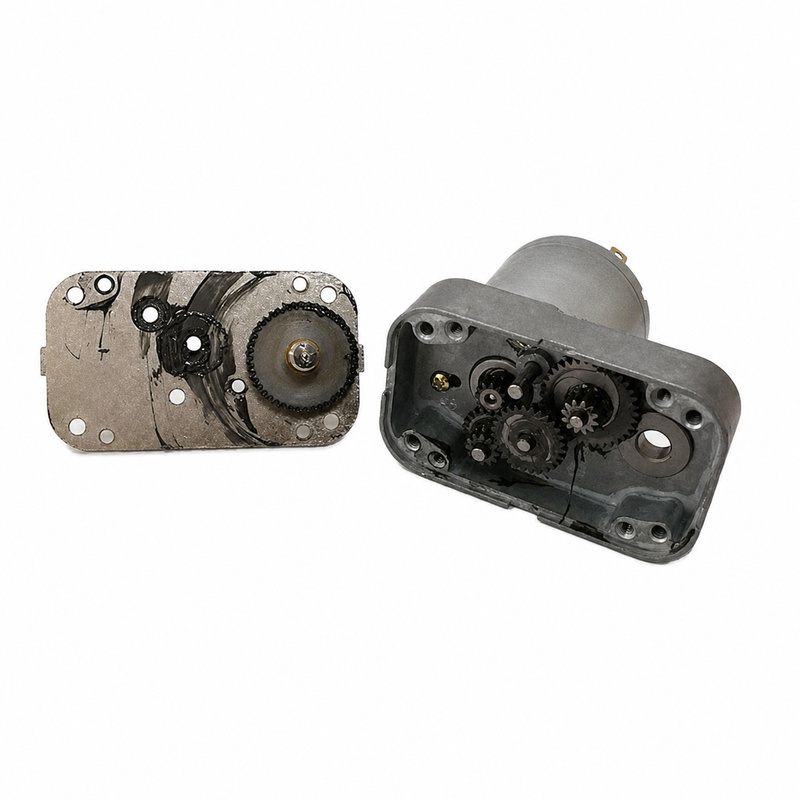

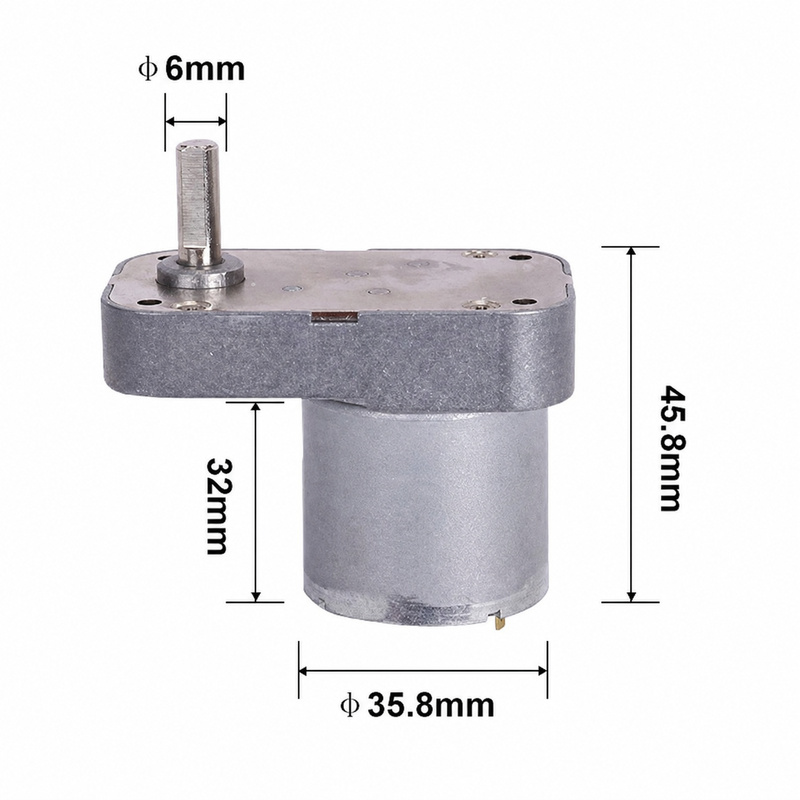

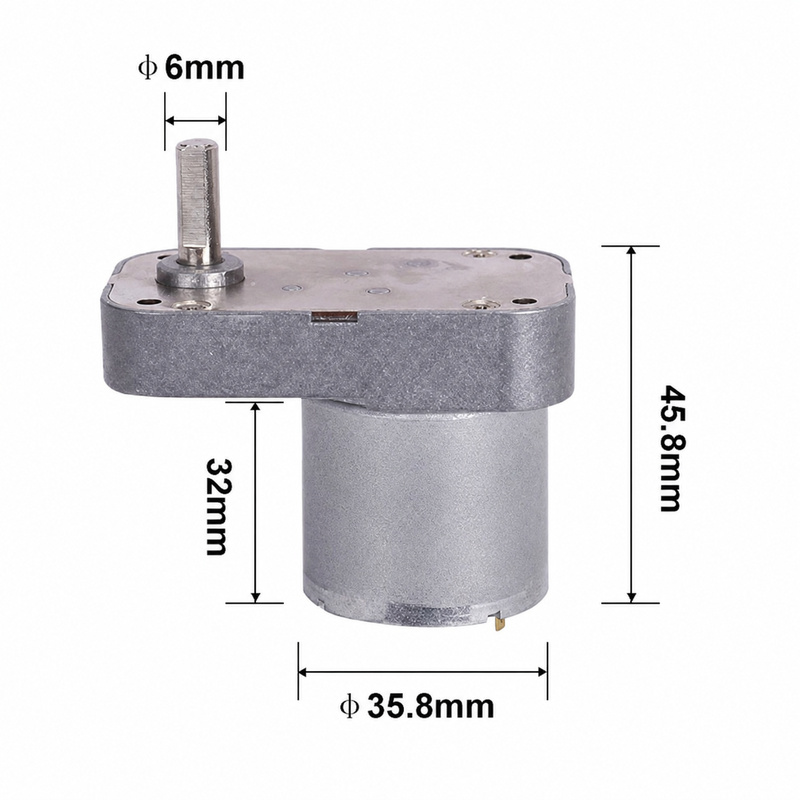

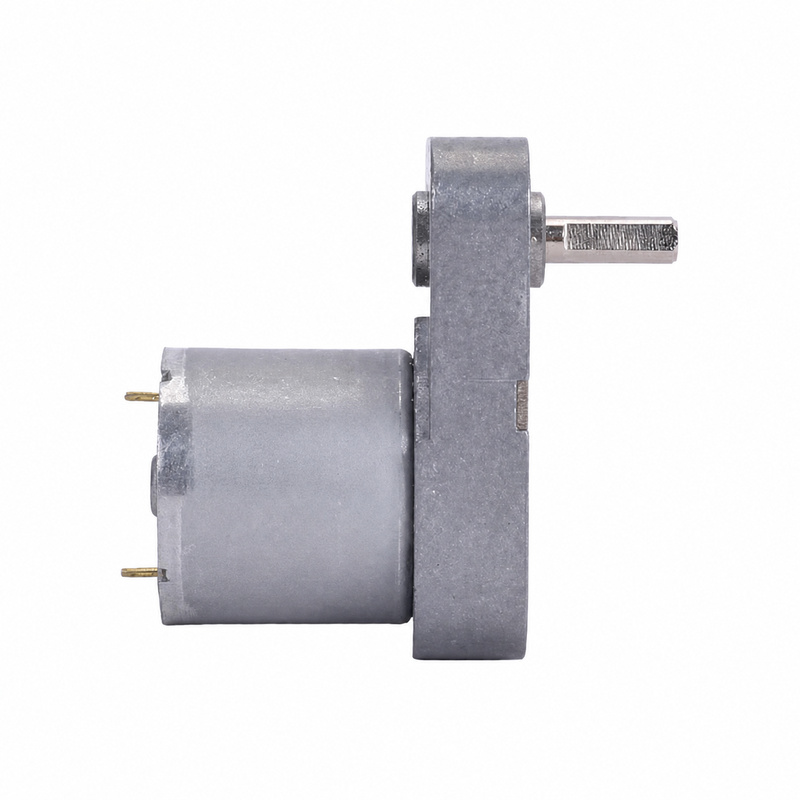

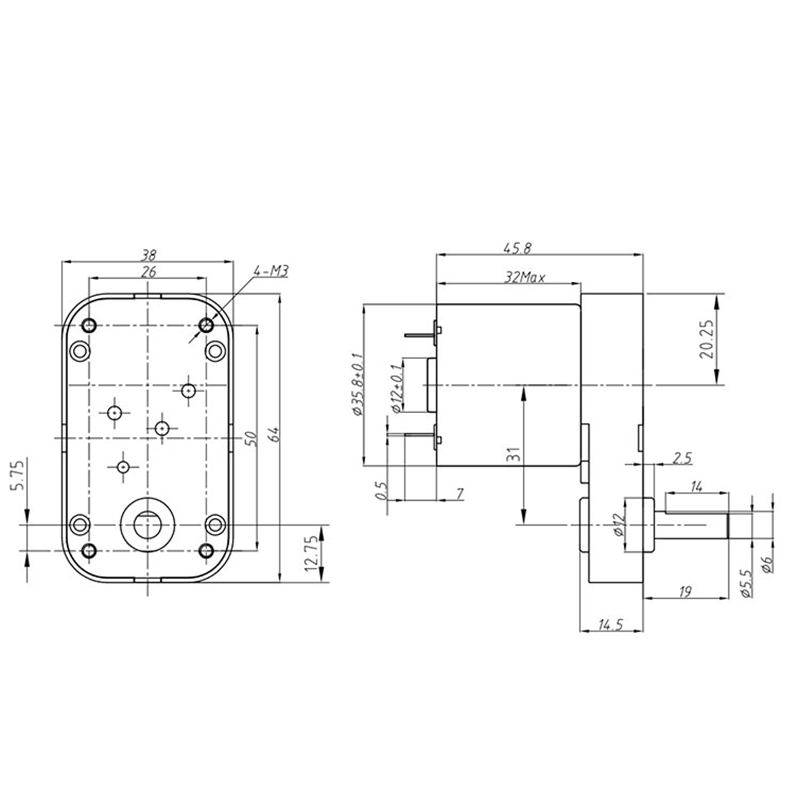

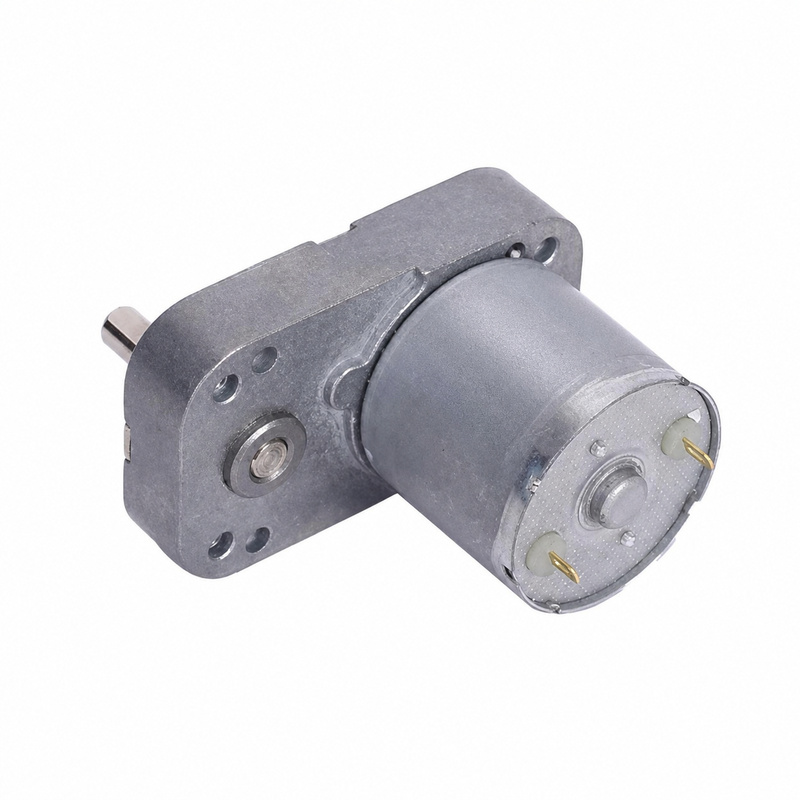

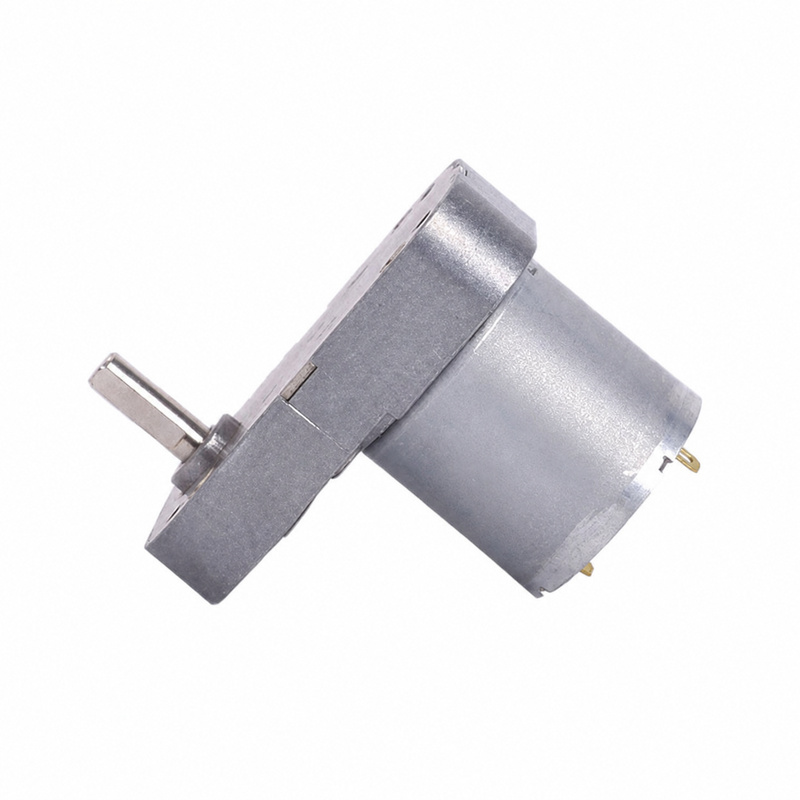

Product Pictures
FAQ
What voltage options are listed for ZT-64GB3530F?
The structured specification table lists 12V and 24V options.
What no-load speed versions are available?
The source table lists 35, 70, 75, 110, 145, 185, 290, 350 rpm no-load speed versions.
