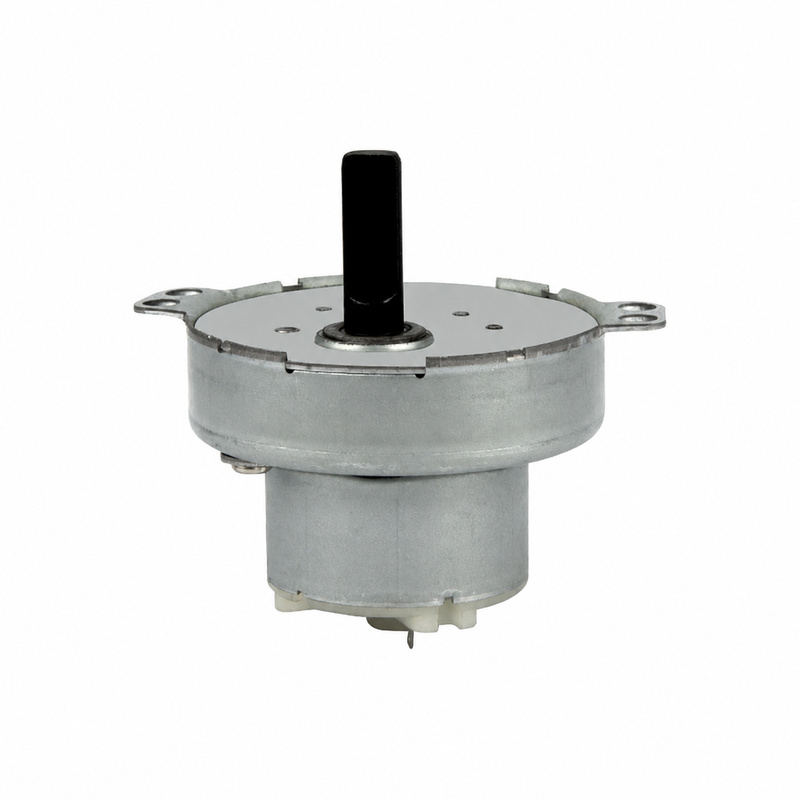

ZT-50GB3217-L Spur Gear DC Motor
ZT-50GB3217-L spur gear dc motor with verified 6V/12V/24V options and 0.2–2.5 rpm source-listed no-load speed versions.
6V / 12V / 24V
- Voltage options: 6V / 12V / 24V
- Rated speed options: 0.15 / 0.375 / 0.9 / 0.75 / 1.85 rpm
Product Detail
ZT-50GB3217-L is a spur gear dc motor with source-listed 6V and 12V and 24V options. Its performance table preserves 6 voltage/speed configurations and keeps every source-provided value aligned to its original row.
Key Features
- 6V and 12V and 24V source-listed voltage options
- 5 source-listed no-load speed versions from 0.2 to 2.5 rpm
Specifications
- Model: ZT-50GB3217-L
- Product type: Spur Gear DC Motor
- Voltage options: 6V / 12V / 24V
- Rated speed options: 0.15 / 0.375 / 0.9 / 0.75 / 1.85 rpm
Technical Sheet
| Model | Voltage | No-load speed (rpm) | Rated speed (rpm) | Rated torque (kg·cm) | Rated current (mA) | Stall current (mA) | Weight (g) |
|---|---|---|---|---|---|---|---|
| ZT-50GB3217-L-6V-0.2 | 6V | 0.2 | 0.15 | 8.5 | 15 | 23 | 130 |
| ZT-50GB3217-L-6V-0.5 | 6V | 0.5 | 0.375 | 30 | 97 | 150 | 130 |
| ZT-50GB3217-L-12V-0.5 | 12V | 0.5 | 0.375 | 18 | 31 | 48 | 130 |
| ZT-50GB3217-L-12V-1.2 | 12V | 1.2 | 0.9 | 55 | 195 | 300 | 130 |
| ZT-50GB3217-L-24V-1.0 | 24V | 1 | 0.75 | 44 | 67 | 104 | 130 |
| ZT-50GB3217-L-24V-2.5 | 24V | 2.5 | 1.85 | 84.5 | 395 | 610 | 130 |

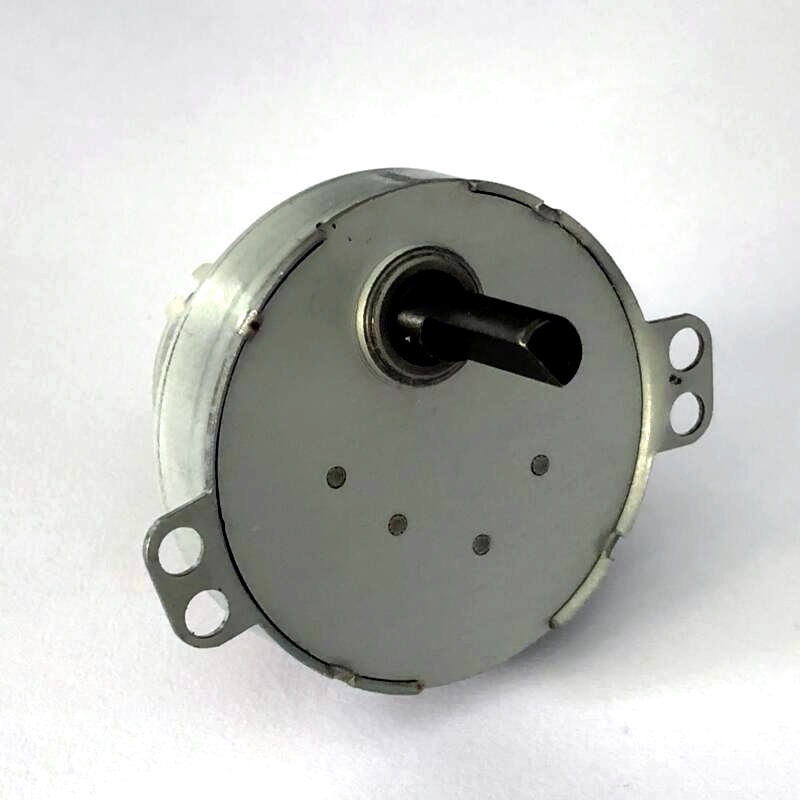

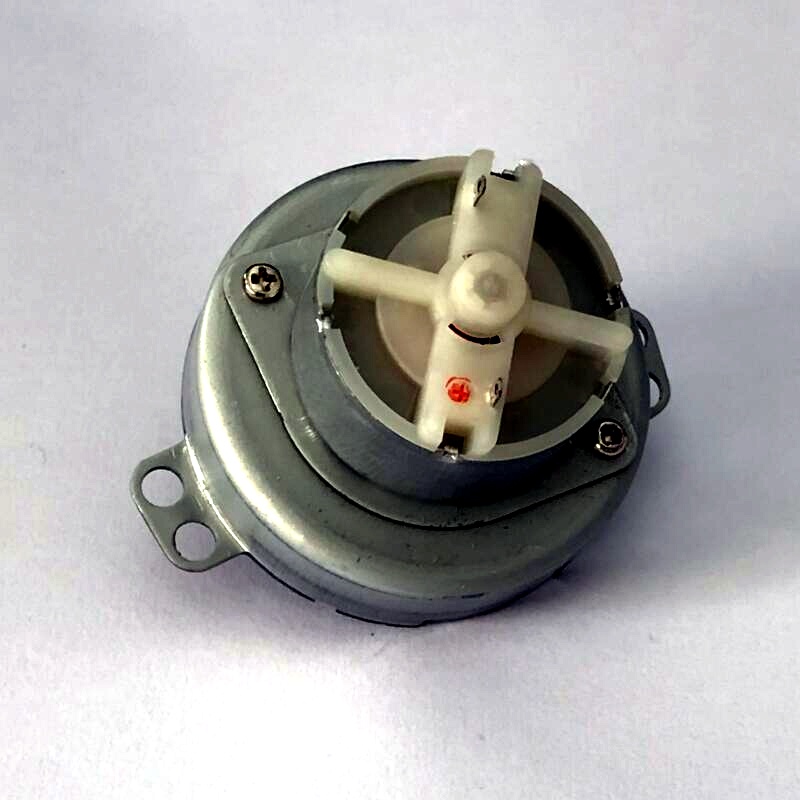

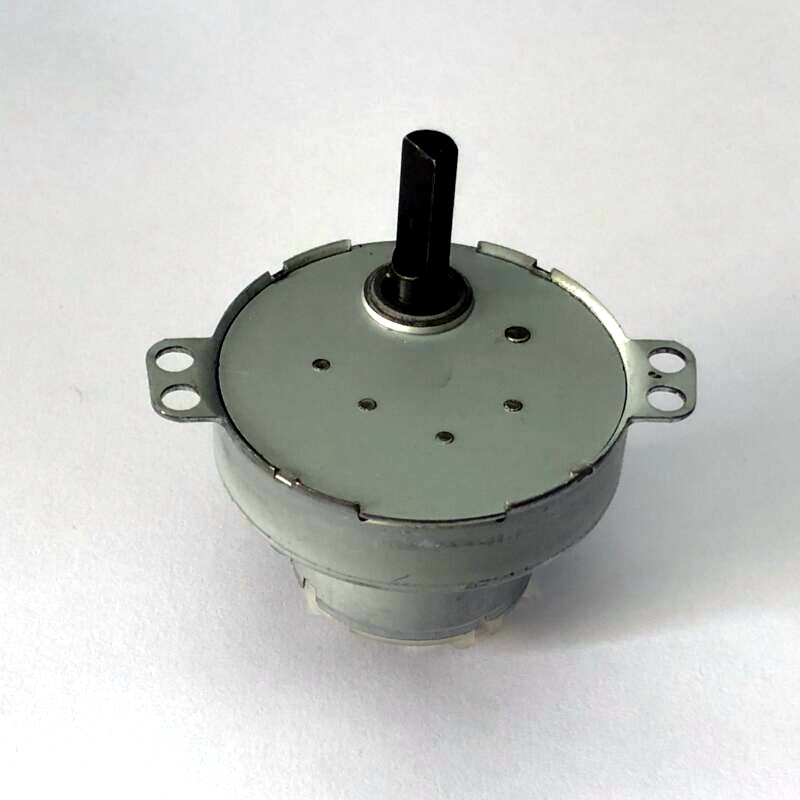

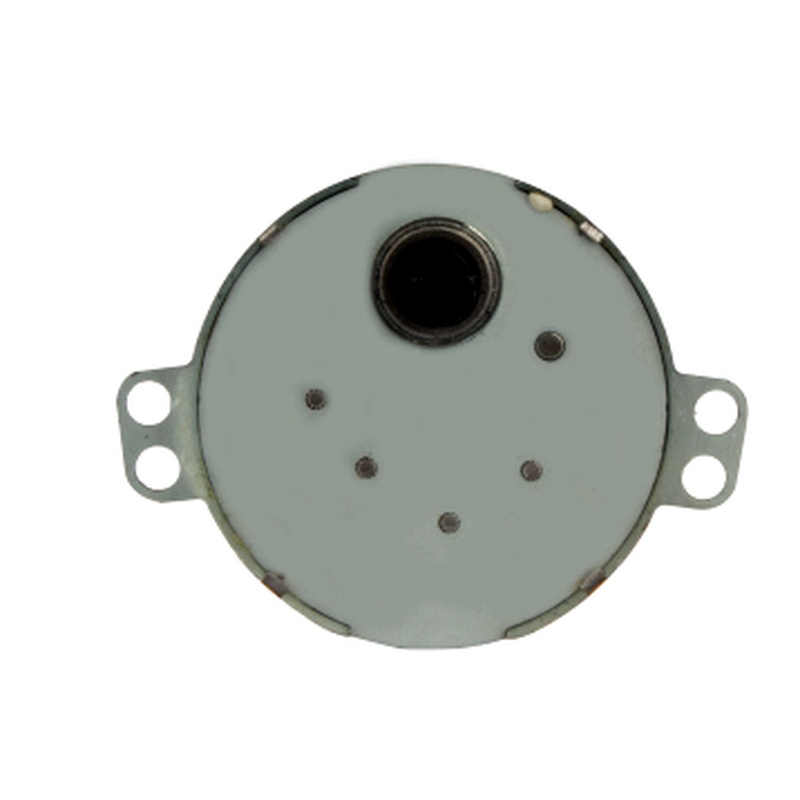

Product Pictures
FAQ
What voltage options are listed for ZT-50GB3217-L?
The structured specification table lists 6V and 12V and 24V options.
What no-load speed versions are available?
The source table lists 0.2, 0.5, 1, 1.2, 2.5 rpm no-load speed versions.
