PRODUCT

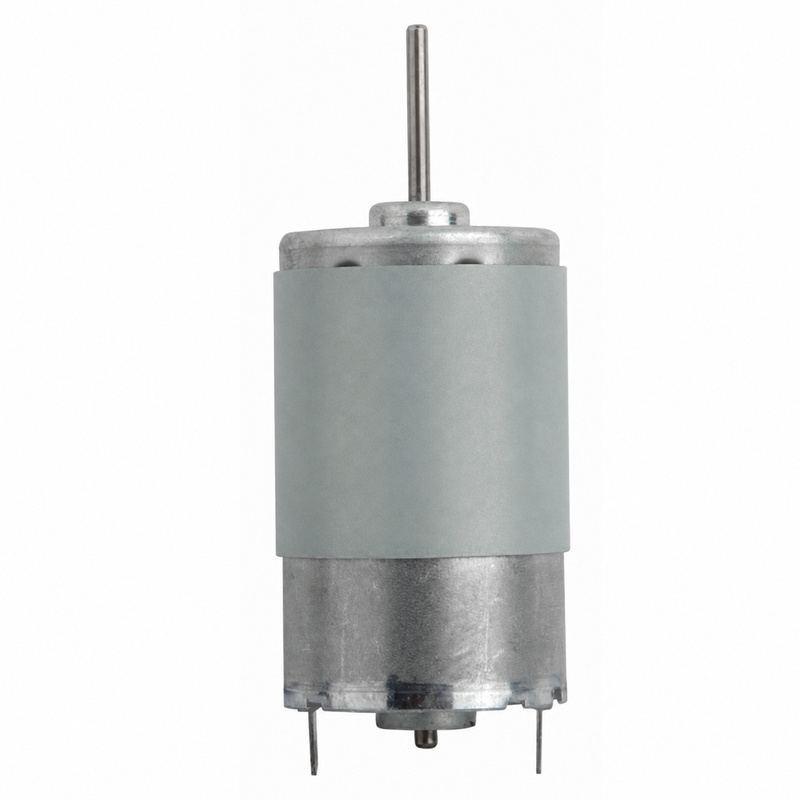

ZT-395R Brushed DC Motor
ZT-395R brushed dc motor with verified 12V/24V options and 3500–6500 rpm source-listed no-load speed versions.
12V / 24V
- Voltage options: 12V / 24V
- Rated speed options: 2450 / 3500 / 4550 rpm
Product Detail
ZT-395R is a brushed dc motor with source-listed 12V and 24V options. Its performance table preserves 6 voltage/speed configurations and keeps every source-provided value aligned to its original row.
Key Features
- 12V and 24V source-listed voltage options
- 3 source-listed no-load speed versions from 3500 to 6500 rpm
Specifications
- Model: ZT-395R
- Product type: Brushed DC Motor
- Voltage options: 12V / 24V
- Rated speed options: 2450 / 3500 / 4550 rpm
Technical Sheet
| Voltage | No-load speed (rpm) | Rated speed (rpm) | Rated torque (kg·cm) | No-load current (mA) | Rated current (mA) |
|---|---|---|---|---|---|
| 12V | 3500 | 2450 | 360 | 140 | 1350 |
| 12V | 5000 | 3500 | 500 | 300 | 1900 |
| 12V | 6500 | 4550 | 540 | 560 | 2650 |
| 24V | 3500 | 2450 | 400 | 125 | 380 |
| 24V | 5000 | 3500 | 560 | 140 | 420 |
| 24V | 6500 | 4550 | 600 | 200 | 450 |

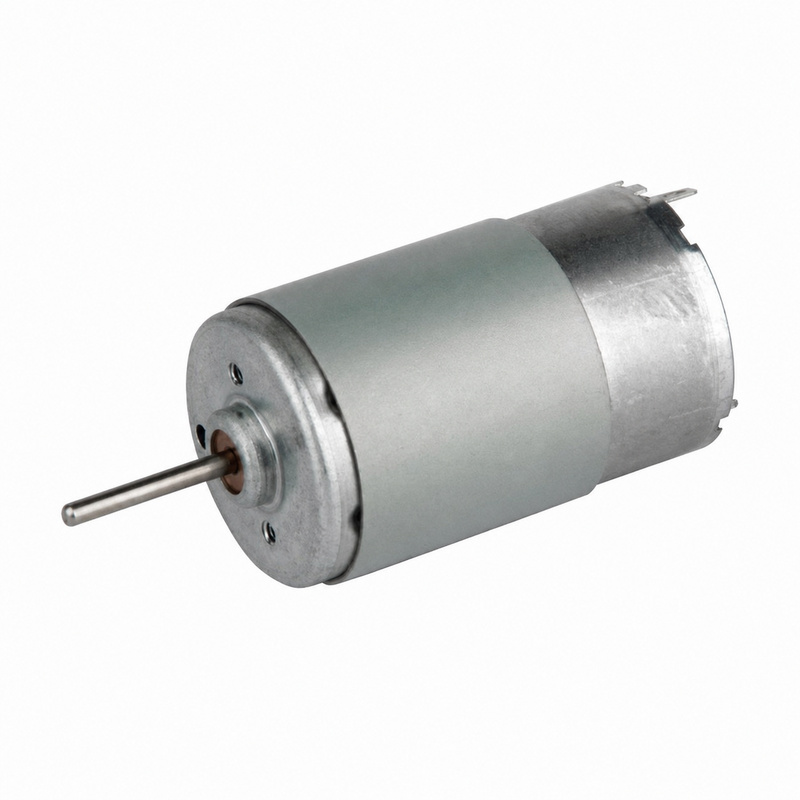

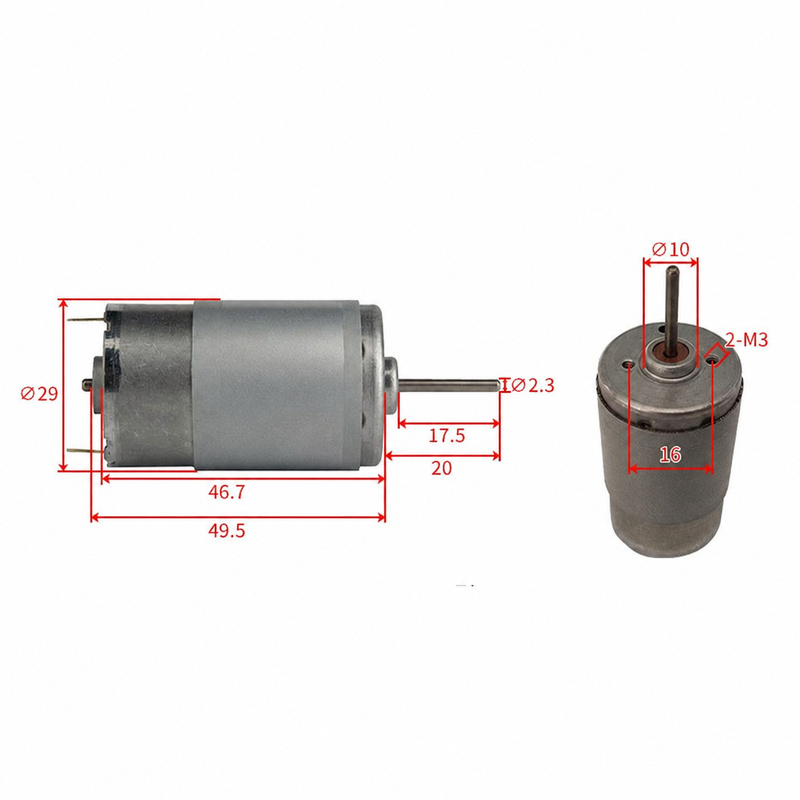

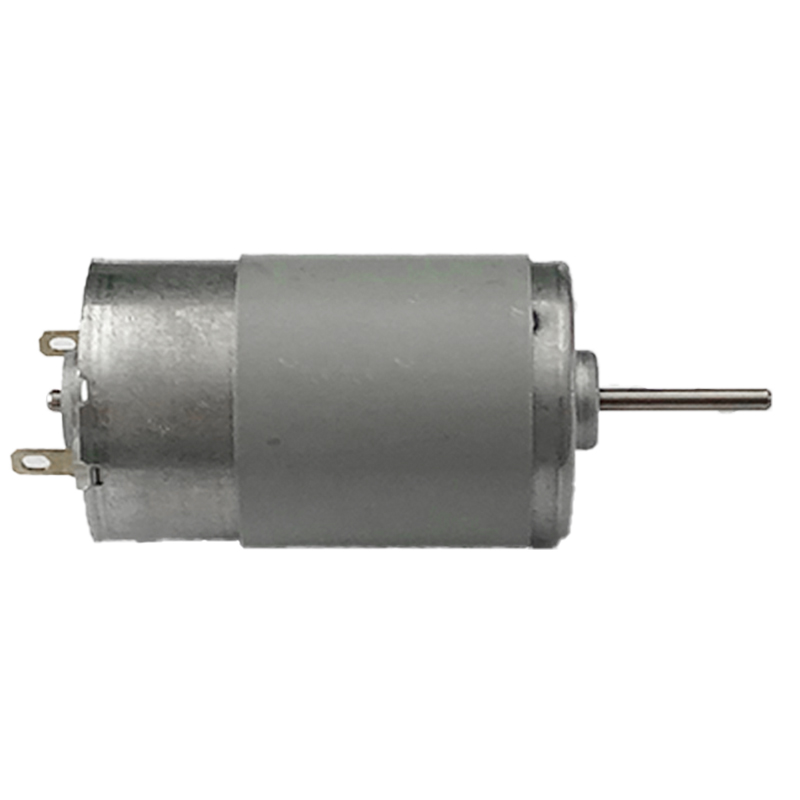

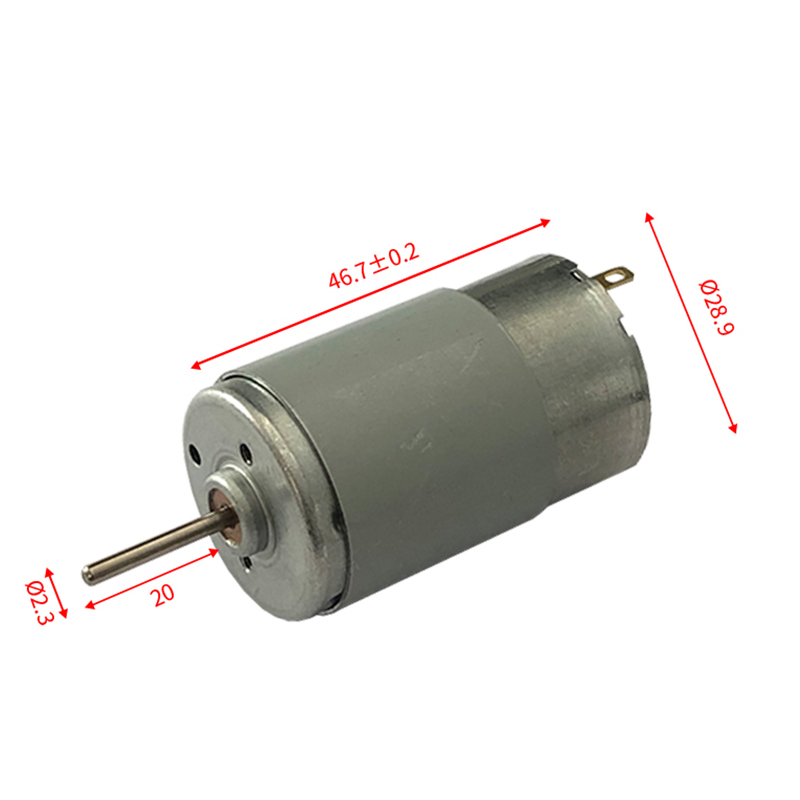

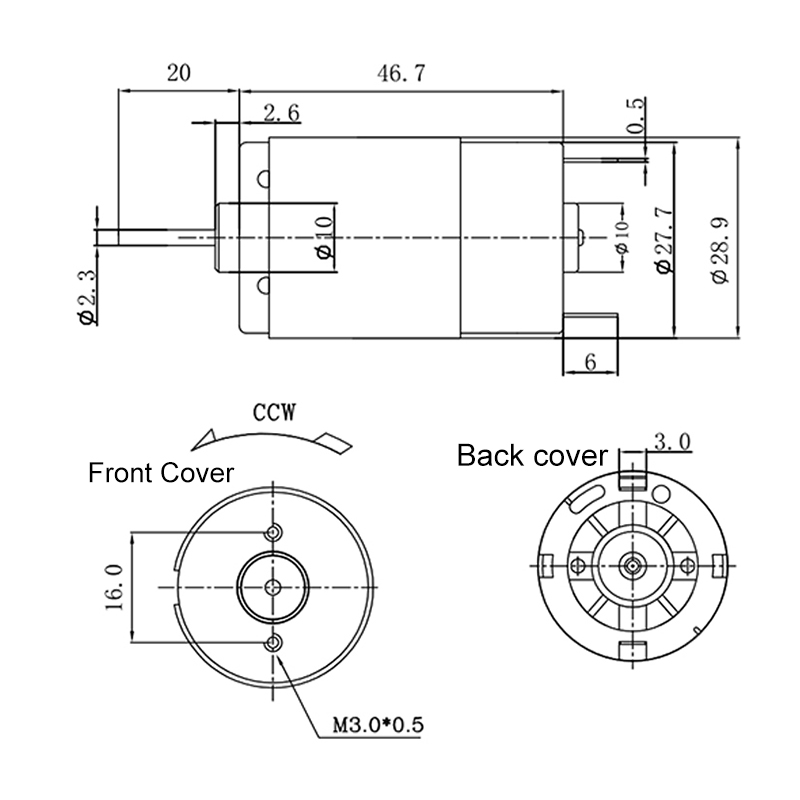

Product Pictures
FAQ
What voltage options are listed for ZT-395R?
The structured specification table lists 12V and 24V options.
What no-load speed versions are available?
The source table lists 3500, 5000, 6500 rpm no-load speed versions.
